Product information

Multi-type Kneader [Fixed type]

Type 450/Type 540/Type 600

Realized the same natural stirring and cooking as hand-kneading. Our long-selling machine!

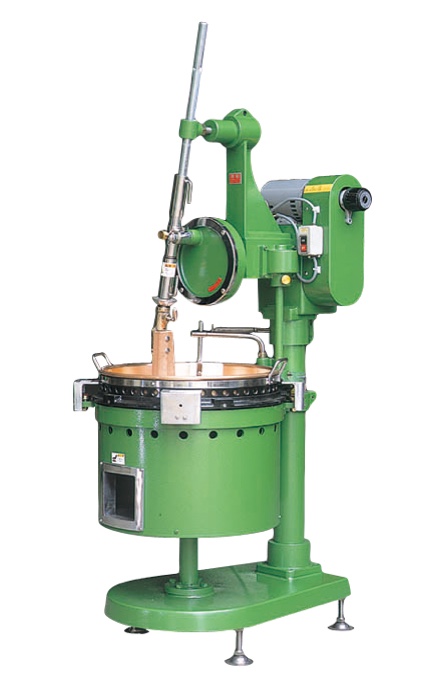

Type 450

Type 540

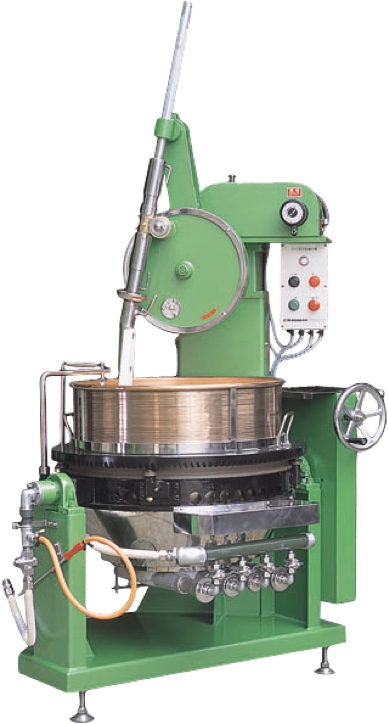

Type 600

Many kinds of stirring is done with this one

This machine performs the same natural stirring and boiling as the hand-kneading, by rotation of the pot and circumference rotation of the cooker. The wide range of stepless speed change enables you to choose the optimum speed. Since the bevel gear is used for the rotation of the pot, the sound is small and it is excellent also in durability. By adding an intermittent timer (option), the stirring process can be rationalized.

Other features

  • For those who do not want to disintegrate ingredients
  • To those who make products of many kinds
  • It is possible to stir while embracing the same air as hand-kneading

Use

Cooking of azuki bean pastes; azuki bean jelly, gyuhi, surimitsu, cooked starch, fried rice, curried rice and rice dishes; cooking/stirring of curry roux or soups; other

Option

Timer · Aluminum pot · Automatic temperature control

Product Specifications

Equipment type SUS mini type Type 660 inverting Type 660 inverting
Model CKOS360 CKOT663S CKOS660S
Copper pot used Inner diameter (mm) 360 660 660
Depth (mm) 210 510 510
Volume (L) 15 140 140
Motor used (kW) Three-phase 0.2 0.75 0.75
Single-phase
Speed (rpm) Paddle 25~50 20~80 20~80
Pot 1.5~3.0 1.1~3.8 1.1~3.8
Installation surface area Vertical (mm) 710 1075 1090
Horizontal (mm) 450 1375 1355
Height (mm) 850 1930~2230 2030~2330
Weight (kg) 120 550 550
Heat source Propane, city gas Propane, city gas Steam

Contact Us

Please do not hesitate to ask questions or consultation

+81.84-955-1372

(Monday - Friday 9:00 - 17:00)
